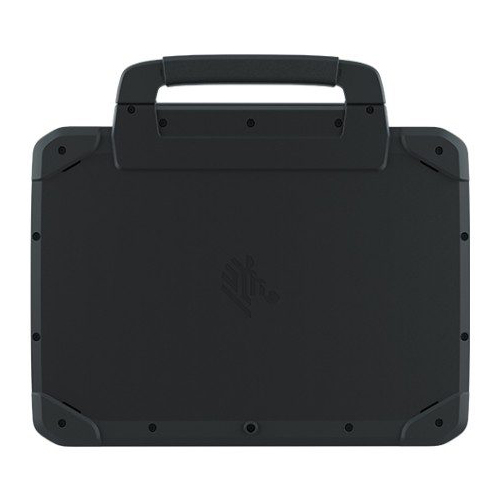

ET80 Rugged 2-in-1 Tablet

IN THE FACILITY



Rugged is standard with the ET80, which makes it an ideal match for the manufacturing plant floor. You’re on your feet and on the go. So, we’ve designed the ET80 to be lightweight and sleek, yet durable with advanced Wi-Fi connectivity. The fanless thermal design, IP65 rating and wipeable exterior are ideal for cleanroom applications and other particulate-sensitive areas. And with Class 1 Division 2 certification, you can configure it for safe use when flammable hazardous materials are present. Tailor it to work your way with a touchscreen, keyboard or both, along with an ecosystem of accessories.



INDUSTRY USE

• Manufacturing



USED FOR

• Routing/Dispatch Communications

• Personnel Tracking

• Incident Reporting

• Patient Care Reporting

• E-Citation

• Emergency Repairs

• Mobile Work Order Management

• Safety Inspection and Compliance

• Manufacturing Plant Floor Management

• Forklift Operations

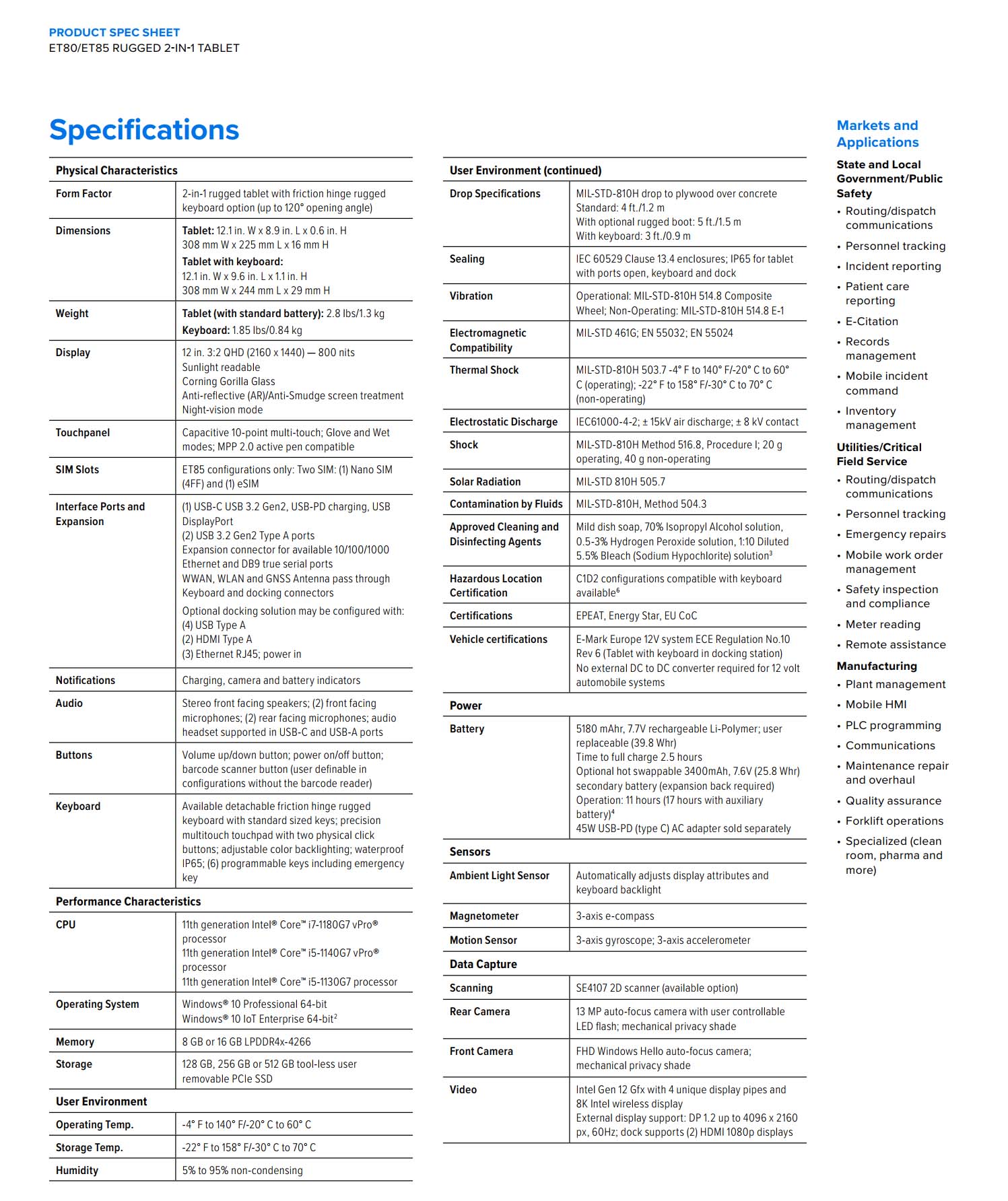

DIMENSIONS AND WEIGHT

Tablet Dimensions:
12.1 in. W x 8.9 in. L x 0.6 in. H
308 mm W x 225 mm L x 16 mm H

Tablet with keyboard Dimensions:
12.1 in. W x 9.6 in. L x 1.1 in. H
308 mm W x 244 mm L x 29 mm H



Tablet weight with standard battery:
2.8 lbs/1.3 kg
Keyboard weight: 1.85 lbs/0.84 kg

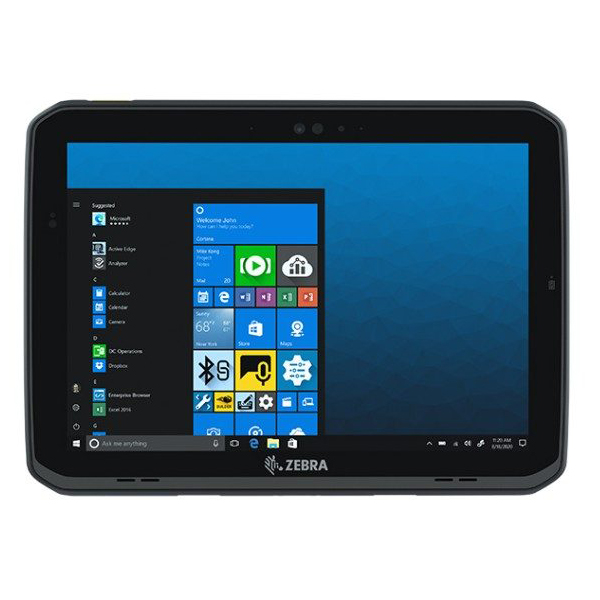

DISPLAY

12 in. 3:2 QHD (2160 x 1440) – 800 nits

Corning Gorilla Glass

Sunlight readable

Anti-reflective/Anti-smudge screen treatment

Night-vision mode



RUGGED SPECS

MIL-STD-810H drop to plywood over concrete

Standard: 4 ft./1.2 m

With optional rugged boot: 5 ft./1.5 m

With keyboard: 3 ft./0.9 m

Sealing: IP65 with ports open

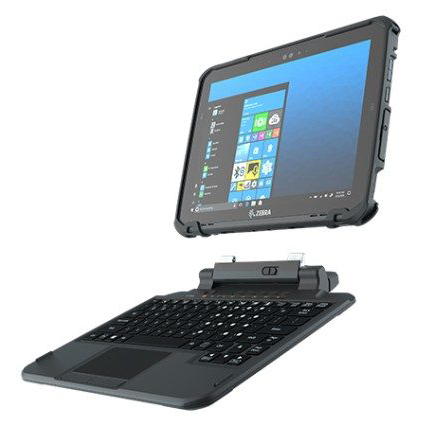

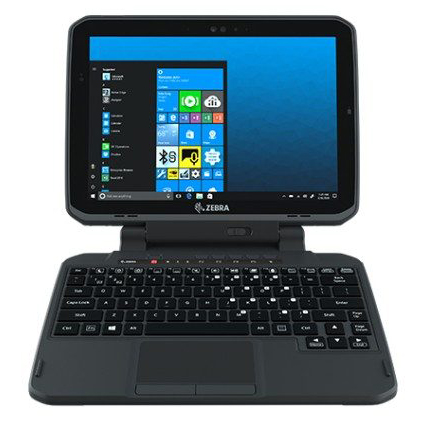

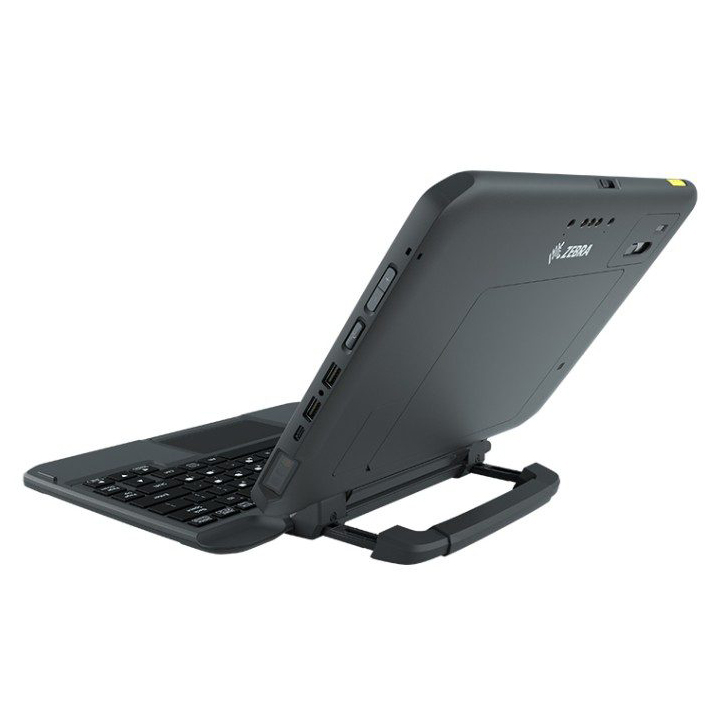

KEYBOARD

Detachable friction hinge rugged keyboard with standard-sized keys

Adjustable color backlighting

6 programmable keys including emergency key



BATTERY

5180 mAhr, 7.7V rechargeable Li-Polymer; user-replaceable (39.8 Whr)

Time to full charge 2.5 hours

Optional hot-swappable 3400mAh , 7.6V (25.8 Whr) secondary battery (expansion back required)

Operation: 11 hours (17 hours with auxiliary battery)



OPERATING SYSTEM AND CPU

Windows® 10 Professional 64-bit
Windows® 10 IoT Enterprise 64-bit*
*Available after initial launch



11th generation Intel® Core™ i7-1180G7 vPro® processor
11th generation Intel® Core™ i5-1140G7 vPro® processor
11th generation Intel® Core™ i5-1130G7 processor

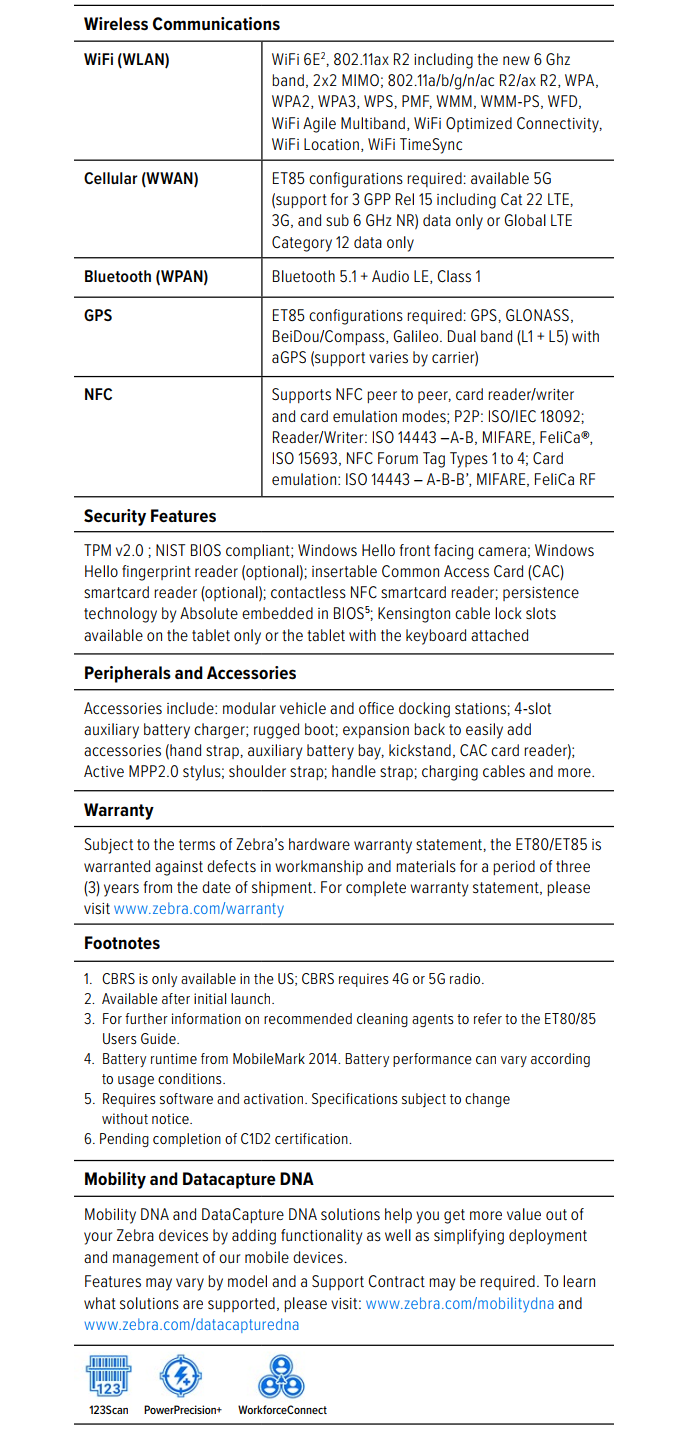

WIRELESS COMMUNICATIONS

WLAN: Wi-Fi 6E*

WPAN: Bluetooth 5.1

*Available after initial launch
